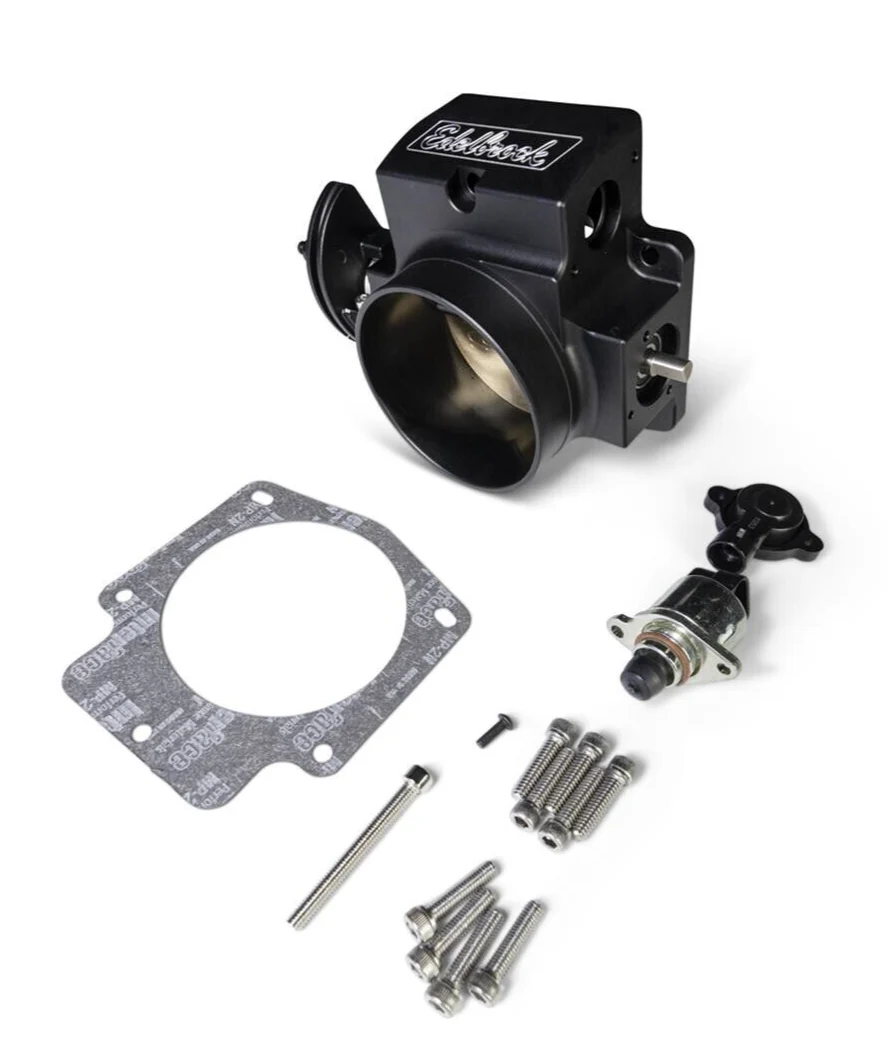

Edelbrock Victor Chev LS Throttle Body 90mm # ED39703
Edelbrock Victor Chev LS Throttle Body 90mm # ED39703
Throttle Body Assembly, Cable Driven, Billet Aluminum, Black Anodized, 90mm, LS, Gen III/IV, Chevy, GMC, Pontiac, Cadillac, Each
Throttle Body Style:
Multi-port injection, MPI
Throttle Body Actuation:
Cable
Venturi Quantity:
1
Venturi Diameter (mm):
90.00mm
Airflow Rate (cfm):
1,000 cfm
TPS Sensor Included:
Yes
IAC Motor Included:
Yes
Gaskets Included:
Yes
Hardware Included:
Yes
Injectors Included:
No
Throttle Body Material:
Billet aluminum
Throttle Body Finish:
Black anodized
Remanufactured:
No
Quantity:
Sold individually.
Notes:
Fits air filter tubing size 3.750 in.
Edelbrock Victor LS Throttle Bodies
Edelbrock Victor LS throttle bodies are constructed from billet aluminum and come complete with TPS and IAC, maximizing performance upgrades on all Pro-Flo XT, EFI Victor Elbow, and Gen III and Gen IV engines with cable-driven throttle bodies.With bolt patterns for both LS generations, these enlarged single-bore throttle bodies feature a progressive throttle linkage and parabolic bore design for increased power and enhanced low-speed drivability. A thicker throttle blade eliminates deflection for boosted applications, while a beefed-up linkage and dual-spring mechanism ensure safety and total throttle control.
