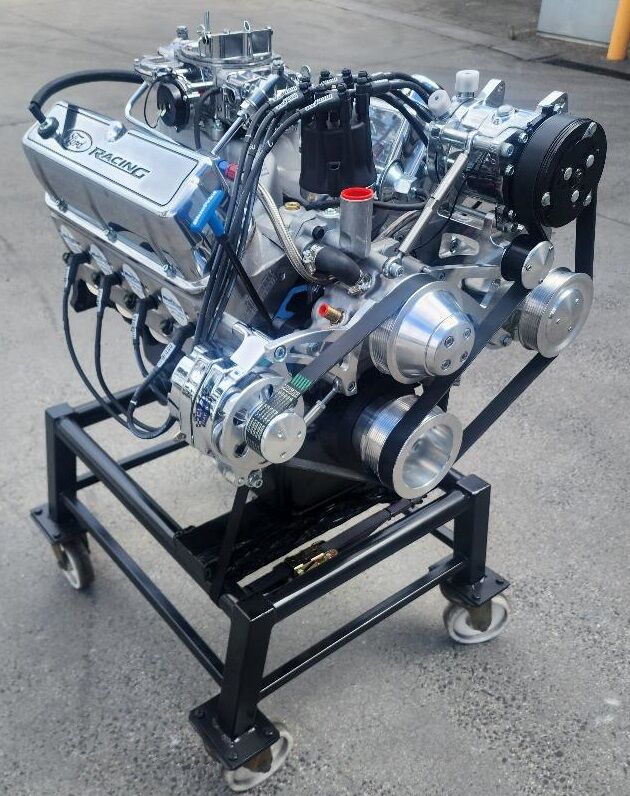

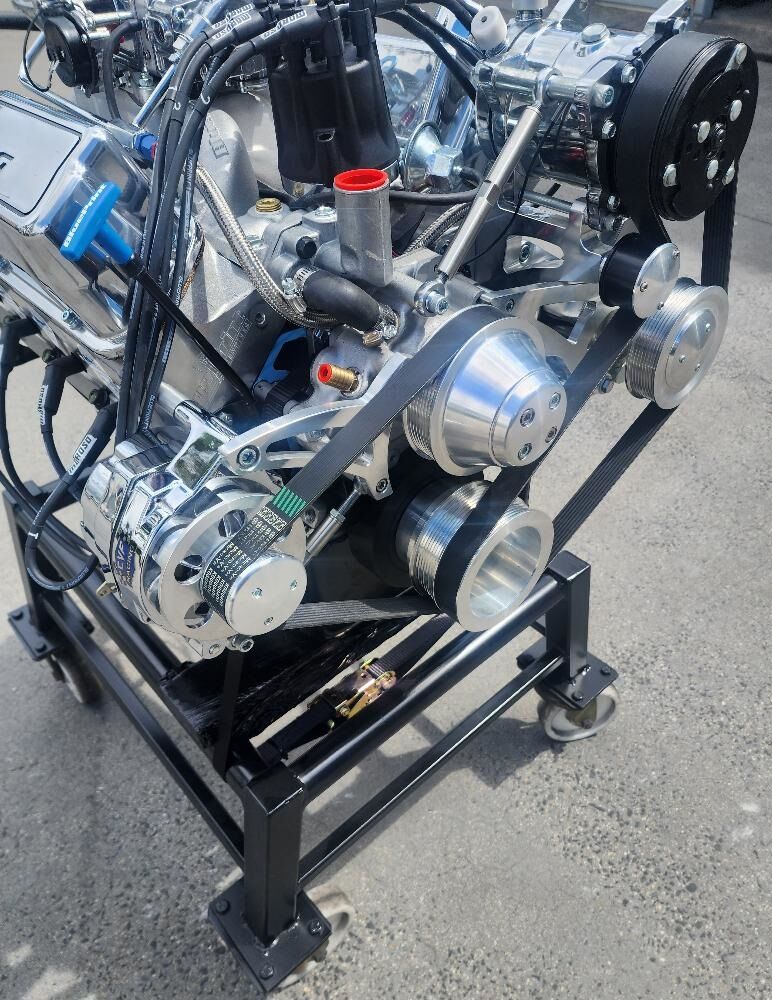

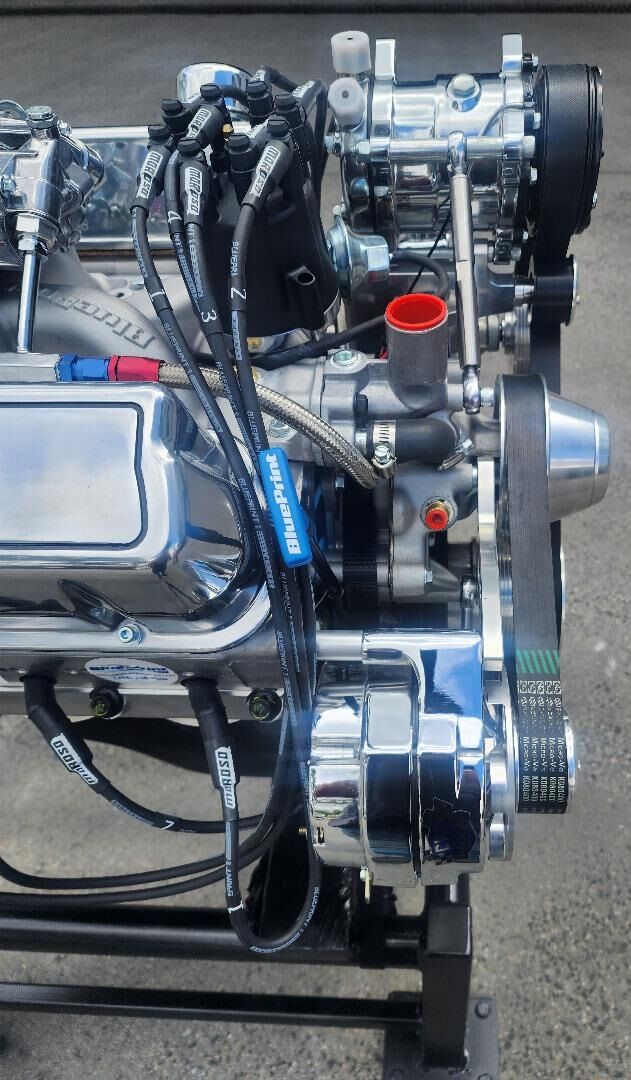

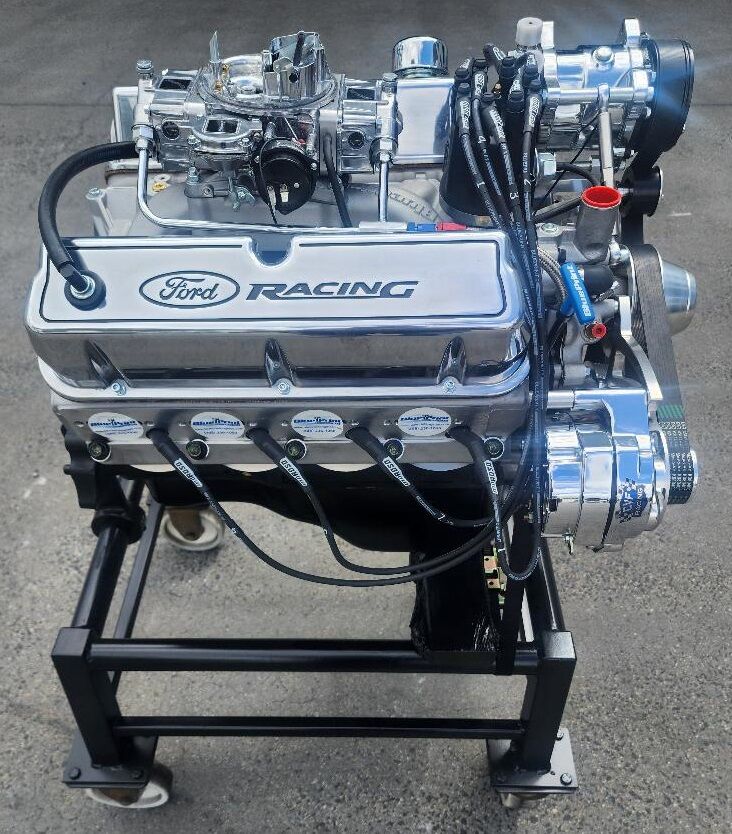

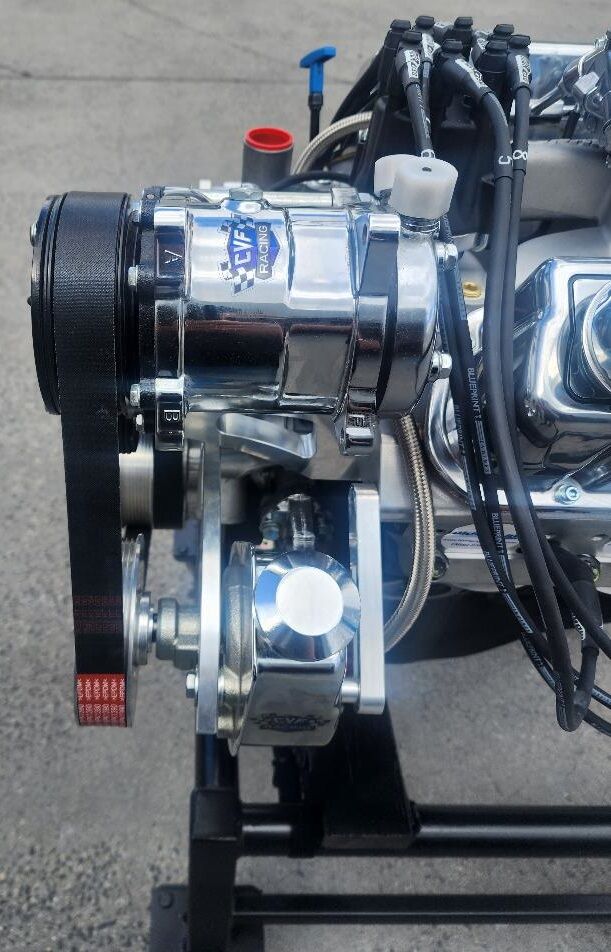

BluePrint Engines Ford 347 Stroker Crate Engine CVF Serpentine Kit # BP3479CTCD-K1
Item Description
Engine fitted With CVF Serpentine Beast kIt Which includes A/C , P/S and Alternator
Also fitted with Ford Racing Polished Rocker Covers.
DESCRIPTION:
- HP & Torque: 415 HP / 415 FT LBS
- Compression ratio: 10.0:1
- Aluminum heads
- Hydraulic roller cam
BLOCK:
- NEW BluePrint Engines' high-strength cast iron block
- Increased deck thickness and strength webbing
- Priority main oiling
- 4-bolt main
- 1-piece rear main seal
- Improved water jacket design
ROTATING ASSEMBLY:
- 3.400" stroke
- Forged 5.400" connecting rods
- Forged pistons
- 28oz external balance
CYLINDER HEADS:
- BluePrint aluminum cylinder heads - HP9009
- 60cc chamber
- 2.02" intake/1.60" exhaust valves
- 190cc intake/60cc exhaust runners
CAM SPECS:
- Roller cam
- .543 intake / .554 exhaust
- 218 intake / 226 exhaust duration
- @ .050 - 112-degree lobe separation
IGNITION TIMING:
- 10-16 degrees initial, 32-34 total
ALSO INCLUDES:
- Front sump oil pan
- Valve covers
- Timing cover
- Carburetor
- Intake
- Standard rotation water pump
- Spark plugs and wires
- Distributor
- Harmonic balancer
- Thermostat and thermostat housing
$4,630.54
