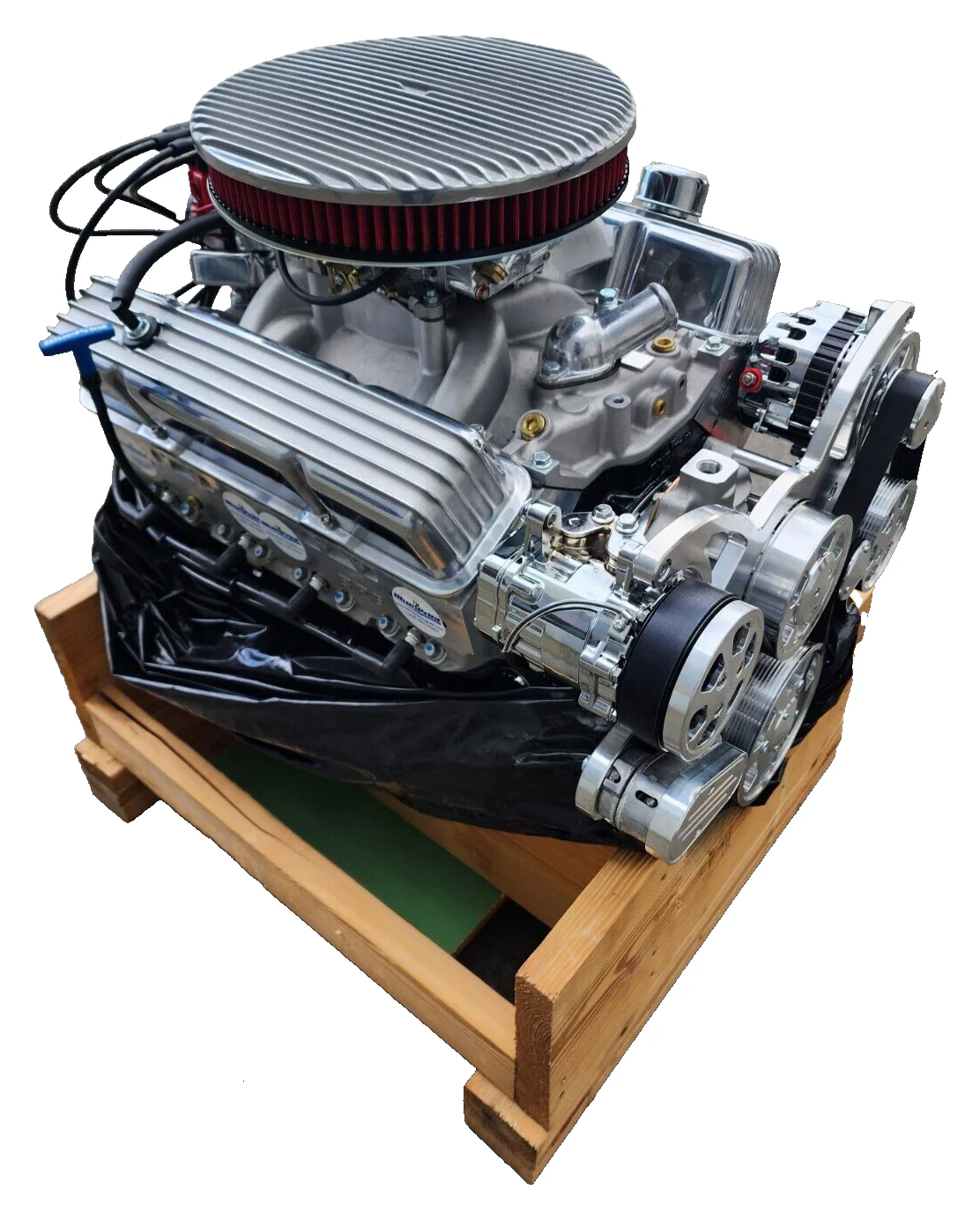

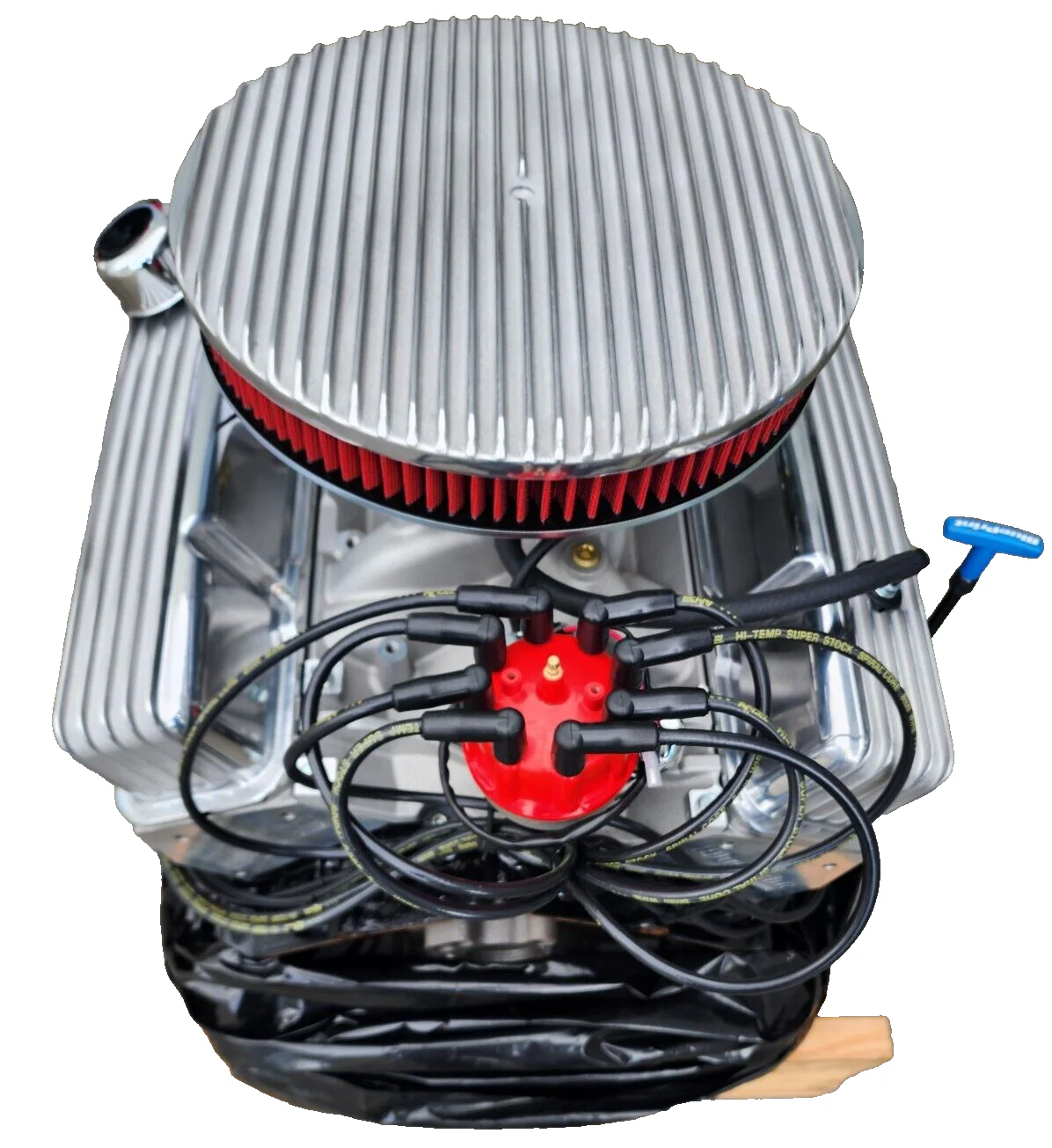

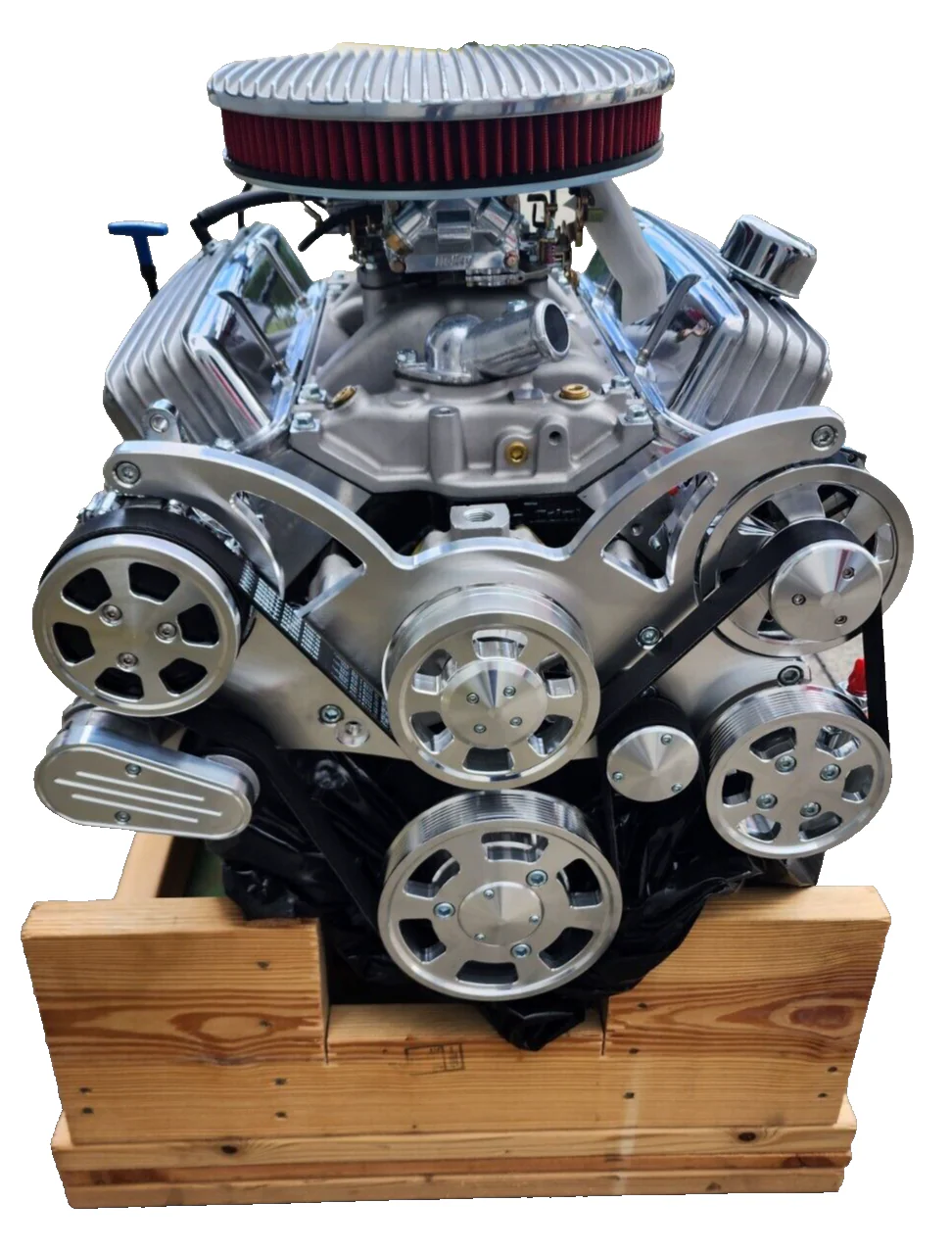

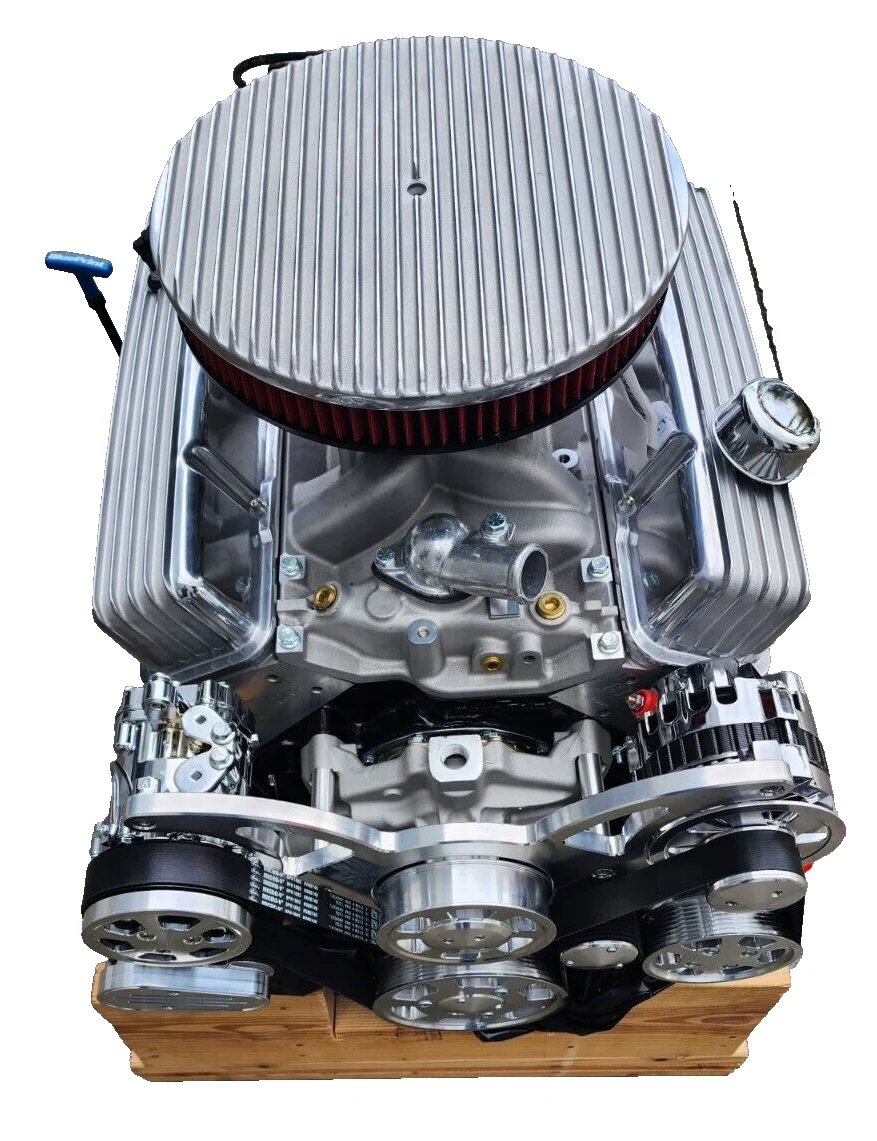

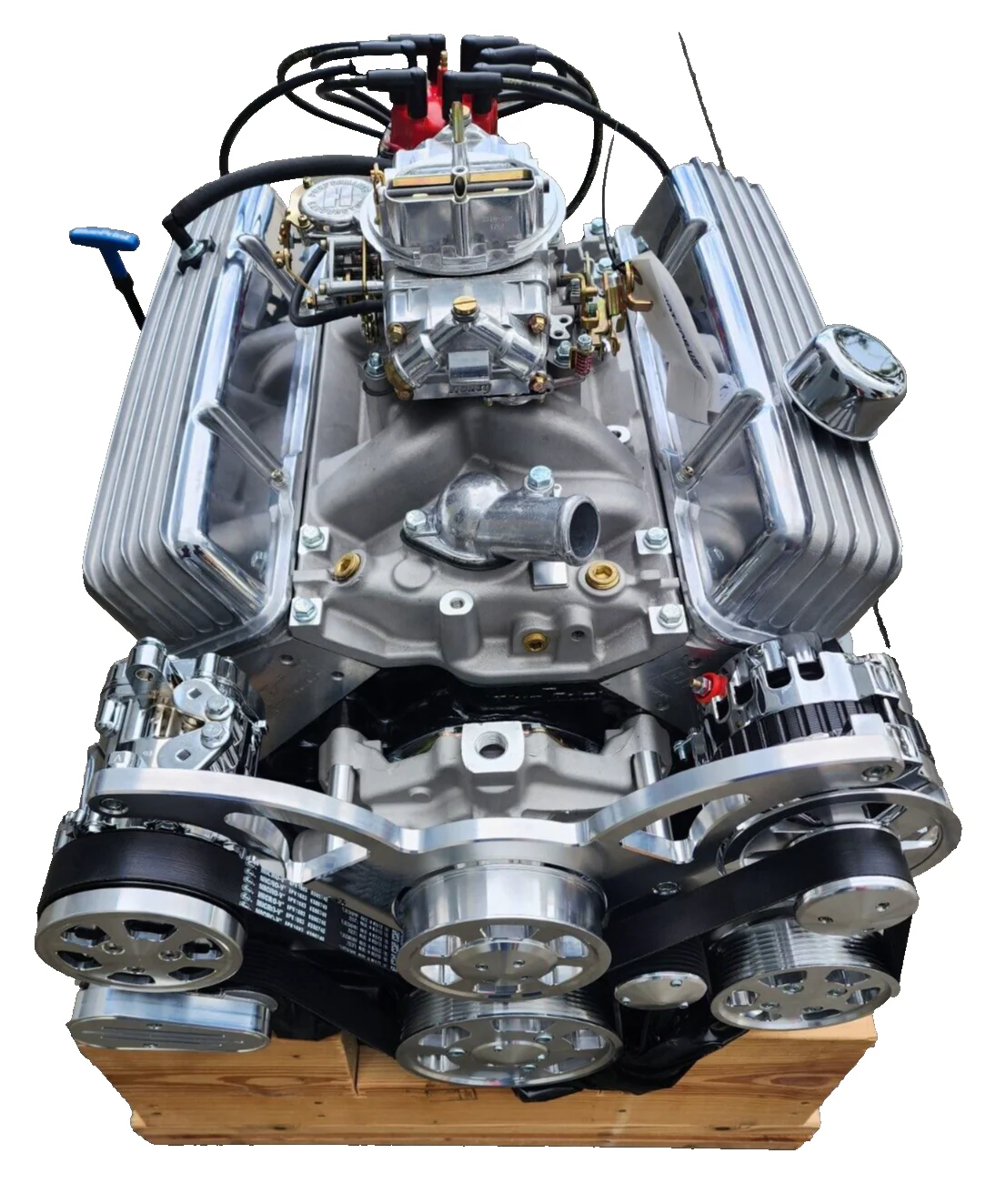

BluePrint Engines Chev 400 Stroker Crate Engine 508HP Serpentine Kit BP4002CTCKV

• BluePrint Engines Chev 400 Stroker Crate Engine 508HP Serpentine Kit BP4002CTCKV
• Engine comes with CVF Serpentine kit / Vintage Rocker Covers & Air Cleaner Assembly
• HP & Torque: 500 HP / 510 FT LBS
  Compression Ratio: 10.3:1
  Aluminum Heads
  Hydraulic Roller Cam
  Forged Crank
  Forged Pistons

BLOCK:

• NEW BluePrint Cast Iron Block
  Manufactured and Machined in the USA!
  4-Bolt Main
  4.125" Bore
  1-Piece Rear Main Seal
  Mech fuel pump provision: Yes
  Passenger Side Dipstick
• Drilled and tapped for clutch linkage

ROTATING ASSEMBLY:

• New BluePrint Forged Crankshaft
  3.750" Stroke
  Forged I Beam 5.700" connecting rods w/ 150,000 psi bolts
  Forged Pistons
  Internal Front/ External Rear

CYLINDER HEADS:

• BluePrint Aluminum Cylinder Heads - HP8103
  64cc chamber
  2.08" intake/1.60" exhaust valves
  220cc intake/67cc exhaust runners

CAM SPECS:

• Cam Type: Roller
  .555 Intake .576 Exhaust
  236 Intake / 242 Exhaust duration
  @ .050 - 110 0 lobe separation

IGNITION TIMING:

• 10-160 inital and total timing 32-340 at 3500 RPM

ALSO INCLUDES:

• Intake Manifold Dual Plane Aluminum
  750cfm Carburetor
• Distributor
• Valve Covers
• Harmonic Balancer
• Spark Plugs
• Spark Plug Leads
• Oil pan
• Timing Cover

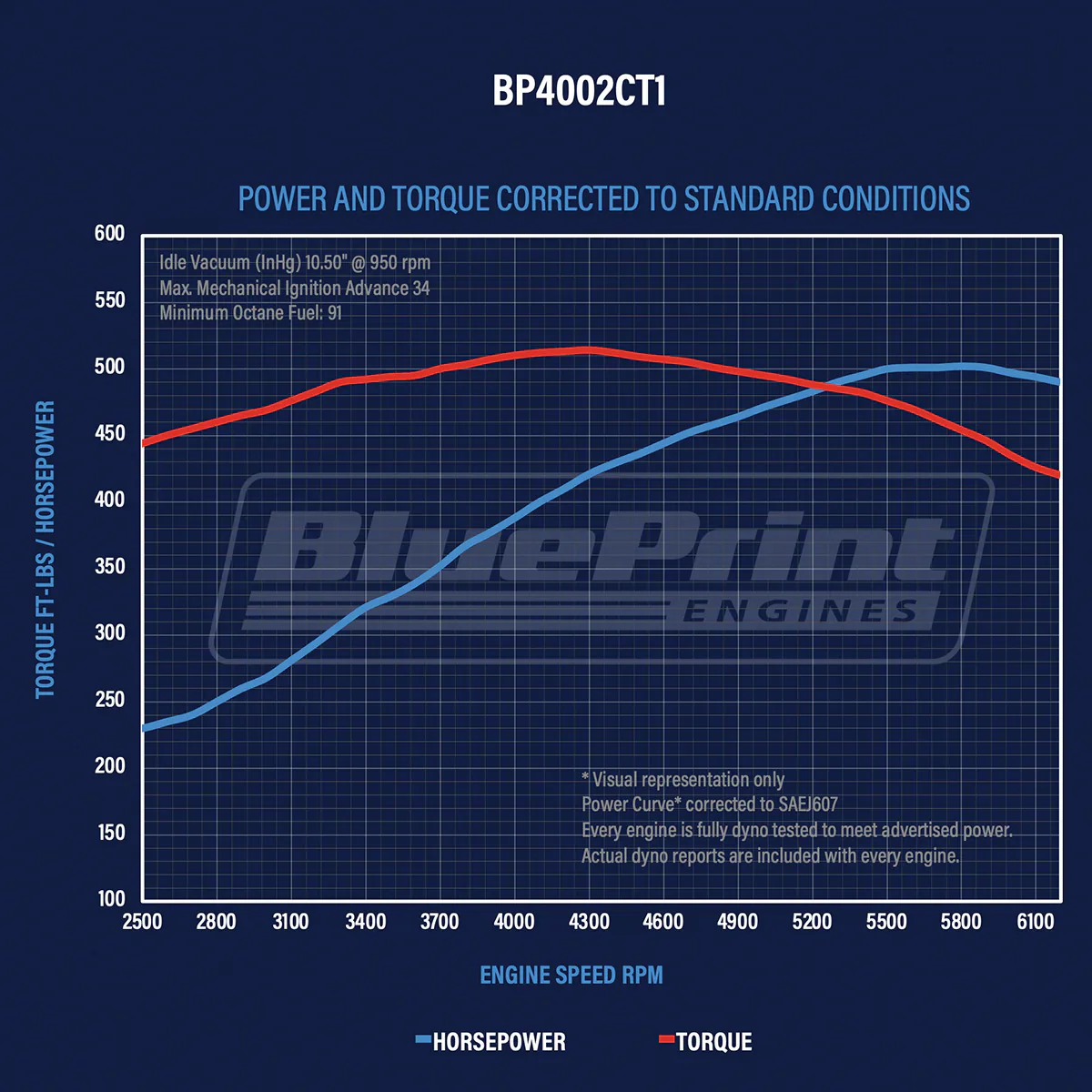

• Dyno Tested and Shipped with Results
• Long Style Water Pump
